7-Eleven

Features
Method	Over the counter, Async - POST Redirect
Countries	Malaysia
Processing currencies	MYR
Increments	-
Captures	-
Partial/Multiple partial captures	-
Cancels	-
Partial/Multiple partial cancels	-
Refunds	-
Partial/Multiple partial refunds	-
Recurring	-
Installments	-
Credits	-
Disputes	-
Min Amount	1.01
Account verification	-

It is an over the counter payment method that is initiated in an e-commerce environment but completed by paying in cash at a 7-Eleven retail location.

An over the counter (OTC) payment is a payment method where consumers deposit money in-person at a retail location, such as 7-Eleven, Ever Superstores, Gaisano, and Cebuana among others, to pay for items purchased online.

When a consumer shops online using the 7-Eleven payment method, the merchant sends a payment to the PSP.

The consumer email has to be provided in the request and it will trigger a notification to the consumer by email with the 7-Eleven reference.

The merchant redirects to the 7-Eleven page and shows the 7-Eleven reference. The consumer can now go back to the ReturnUrl.

Now the consumer can complete the purchase in-person at a 7-Eleven store with cash using the 7-Eleven reference.

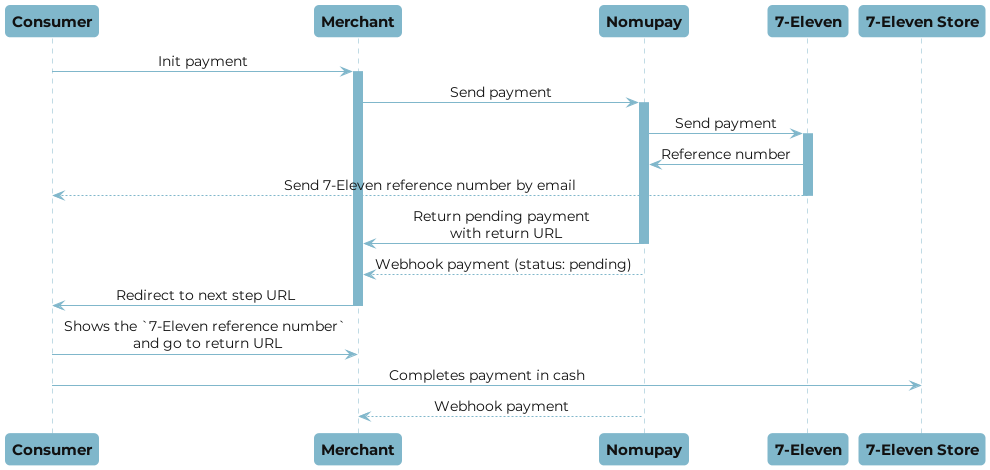

Payment flow

Required constraints

• Webhooks or polling mechanisms are mandatory as the payment is completed in a 7-Eleven store.
• The consumer mail is required in order to receive the reference number from 7-Eleven, although the consumer can get the 7-Eleven reference number from the screen too.

Payment

Request

{
    "processingAccountId": "2HdN2jq6XWmlkhqRC2gDTNYCvNH",
    "merchantReference": "B2A8734D-9450-4915-A63D-FE5C21F09550",
    "amount": {
        "value": 200,
        "currency": "myr"
    },
    "paymentMethod": {
        "type": "seven_eleven",
        "sevenEleven": {
            "returnUrl": "https://merchant.site/complete-payment",
            "consumer": {
                "email": "consumer@mail.com"
            }
        }
    }
}

Response

{
    "id": "27yiW9MgzBtwiodreuNOXk0rtIw",
    "merchantReference": "B2A8734D-9450-4915-A63D-FE5C21F09550",
    "status": "pending",
    "trackingUrl": "/v1/tracks/payments/{trackId}",
    "reason": {
        "code": "required_next_step",
        "description": "An additional step is needed to complete the payment."
    },
    "nextStep": {
        "type": "redirect",
        "redirect": {
            "method": "post",
            "url": "https://payment.method/complete",
            "params": [
                {
                    "name": "param1",
                    "value": "value1"
                },
                {
                    "name": "param2",
                    "value": "value2"
                }
            ]
        }
    }
}
